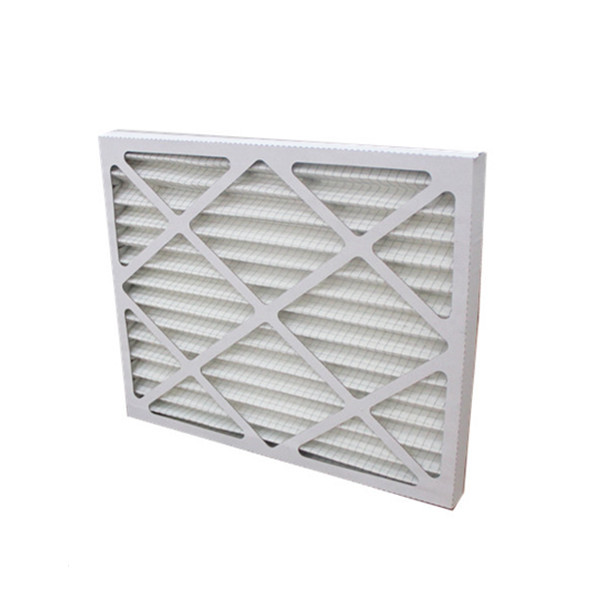

    HVAC Pleat Panel Air Filter For Ventilation System Odor Cleaning G3 G4

    Ask Lasest Price
    Brand Name : OEM
    Model Number : sandard
    Certification : ISO
    Payment Terms : T/T, Western Union
    Supply Ability : 500 pcs per day
    Delivery Time : 15 days after receive despoit
    • Product Details
    • Company Profile

    HVAC Pleat Panel Air Filter For Ventilation System Odor Cleaning G3 G4

    HVAC Cardboard Pleat Panel Air Filter for Ventilation System

    Product Description
    Type: QBK Series Pleated Cardboard Prime Air Filter

    Features: 1. Reliable, simple, general
    2. Large filter area
    3. Low resistance
    4. Washable
    5. Large dust holding capacity
    6. Replaceable filter media


    Frame: Paper board

    Material: Synthetic fiber

    Efficiency: G3. G4

    Humidity: not more than 90%

    Recommended final pressure drop: not more than 180Pa


    Applications:


    1. Pre filter for commercial & industrial ventilation system
    2. Automotive industry
    3. Hotel and office building


    Specification

    Norminal thickness

    (inch)

    Norminal size

    (inch)

    Actual sie(mm)

    Filter area

    (m2)

    Air flow /resistance

    (m3/h/pa)

    Number of pleat/inch

    (1inch=305mm)

    HeightWidthDepth
    4”24×24×4594594952.661700/183400/6811
    24×12×4594289951.30850/181700/68
    24×20×4594492952.201420/182840/68
    20×20×4492492951.821180/182360/20
    20×16×4492391951.45935/181870/68
    25×20×4619492952.301480/182960/68
    25×25×4619619952.901860/183720/68
    2”24×24×2594594451.751700/203400/7015
    24×12×2594289450.85850/201700/70
    24×20×2594495451.461420/202840/70
    24×18×2594445451.311275/202550/70
    20×20×2495495451.211180/202360/70
    20×18×2495445451.091060/202120/70
    20×16×2495394450.97935/201870/70
    20×12×2495289450.74715/201430/70
    25×20×2622495451.521480/202960/70
    25×18×2622445451.371325/202650/70
    25×16×2622394451.181180/202360/70
    1”24×24×1597597220.881190/202380/7016
    24×12×1597292220.43590/201190/70
    24×20×1597495220.74995/201990/70
    20×20×1495495220.6825/201650/70
    20×16×1495394220.48660/201325/70
    25×20×1622495220.761035/202070/70
    25×16×1622394220.61825/201650/70

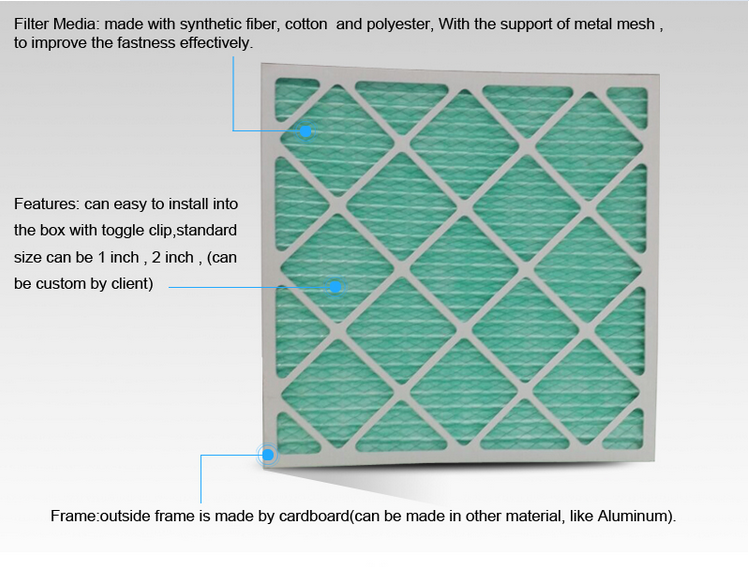

    Product Display

    QBK-017

    HTB15HJ0NVXXXXaKXVXX760XFXXXbHTB1djh9NVXXXXaDXFXX760XFXXX0


    Packaging & Shipping

    1. Packaging Details: Carton box and pallets / According to client’s requirement
    2. Delivery Details: 7-15 workdays / According to different filters and quantity
    3. Shipment Types: International express / air / sea
    4. Shipment Port: Shanghai, Tianjin or any other Chinese ports

    Panel package2
